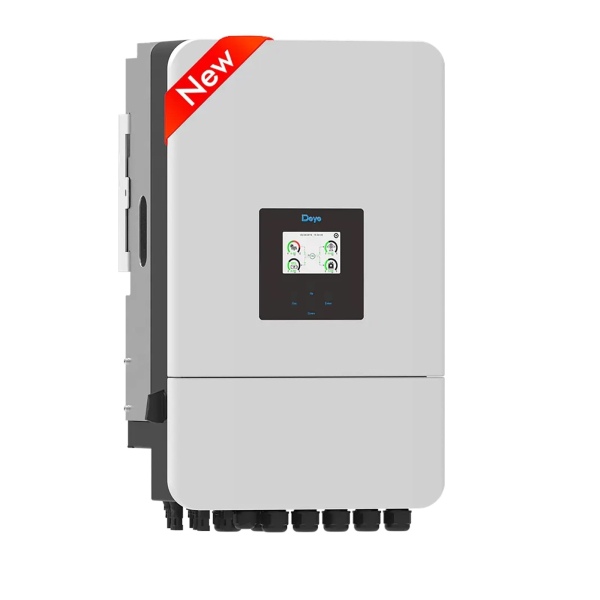

Deye 15kW Three Phase LV Hybrid Inverter – SUN-15K-SG05LP3-EU-SM2

VOC: 800V | Battery: 48V | CT & WiFi Included

The Deye 15kW Three Phase Low Voltage Hybrid Inverter is a powerful and flexible solution for residential, agricultural, or commercial solar systems. Designed for both on-grid and off-grid applications, this advanced inverter seamlessly integrates solar, battery, and grid power with exceptional efficiency and intelligent energy management.

Key Features:

• High PV Capacity: Supports up to 24,000W of solar input with a max voltage of 800V
• Massive Battery Current Handling: Charge/discharge up to 350A
• Flexible 48V Battery Support: Compatible with lithium-ion or lead-acid batteries
• Smart Load Management: 6 configurable time slots for optimized battery usage
• Full 3-Phase Output: 100% unbalanced load handling – perfect for uneven 3-phase systems
• Parallel Ready: Connect up to 10 units for large-scale installations
• AC Coupling Compatible: Retrofit existing solar systems easily
• Built-in Monitoring: WiFi & CT module included for real-time system tracking

Advanced Safety & Protection:

• Reverse polarity, overcurrent, short circuit, overvoltage, and thermal protection
• Residual current & arc fault detection
• Type II surge protection (AC & DC sides)
• Certified for global grid codes (IEC, VDE, CEI, NRS, EN, etc.)

Technical Specs:

• Rated Power: 15,000W
• Max PV Input Power: 24,000W
• MPPT Voltage Range: 160–650V
• Max PV Voltage: 800V
• Max Efficiency: 97.6% | MPPT Efficiency: >99%
• IP Rating: IP65 – Weather-resistant for outdoor installations
• Cooling: Intelligent air cooling
• Weight: 51.9kg
• Dimensions: 456 × 750 × 268.5 mm
• Noise Level: <60dB
• Grid Type: 3L + N + PE (Three-phase + Neutral + Earth)

 Perfect For:

• Medium to large residential homes
• Farms or agricultural energy systems
• Light commercial or industrial buildings
• Systems requiring high battery throughput and unbalanced 3-phase loads

Warranties: All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labor. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at the void. The serial Numbers of the units also need to match for the item that was sold as to avoid tampering or returning of another similar item with a different serial number.

What's in the box
1 x Deye 15Kw Hybrid Inverter
1 x Stick logger
3 x Bolts and nuts
1 x Manual
1 x User manual
1 x Split core ct CTSA016 -100A/50mA
4 x Rawl Bolts
1 x Communication Cable
1 x misc Cable
2 x Bolts and nuts
1 x Allenkey
